Flat Roof Drain Systems: Types, Problems & Best Fixes (2025)

Struggling with flat roof drainage? Learn about flat roof drain types, common issues, and smart solutions to prevent water damage.

1. Introduction of Flat Roof Drainage and why important

Last year, during the first heavy rain of the season, I got a call from a friend whose newly built garage had water dripping from the ceiling. The surprising part? The roof was brand new. The problem wasn’t bad roofing — it was bad drainage. Flat roofs look modern and clean — but what many people don’t realize is that without a proper drainage system, they can turn into shallow swimming pools. Unlike sloped roofs, flat roofs don’t shed water naturally. So if the water isn’t drained out properly, it just sits there, causing leaks, roof bubbles, sagging, mold, and long-term structural damage.

Whether you’re a homeowner, a builder, or just planning a flat roof garage or deck, one thing’s for sure — a smart flat roof drain system is not optional. It’s essential.

In this blog, we’ll walk you through the types of drain systems, mistakes people make, problems to watch for, and what you can do to keep your flat roof dry, safe, and strong.

Let’s chack all problems of flat roof drain.

2. Why Flat Roof Drain Is Non-Negotiable

You might think, “It’s just a flat roof — how bad can standing water really be?”
Well, here’s the truth: flat roofs aren’t truly flat — they just look flat. But they still need a slight slope and a smart drainage system to keep water flowing out.

Without that? Trouble starts fast.

Rainwater that stays on the roof begins to collect in low spots. Over time, this pooling water seeps into small cracks, loosens the roofing material, and causes what’s known as roof blisters or bubbles. It doesn’t stop there — trapped moisture weakens insulation, encourages mold growth, and can even cause sagging in the roof deck.

This is especially dangerous for bitumen flat roofs, flat roof garages, or DIY roof decks, where drainage is often overlooked or done incorrectly.

The bottom line? A poorly drained flat roof isn’t just a leak risk — it’s a slow, silent destroyer. That’s why a well-designed drainage system isn’t an upgrade. It’s the foundation of your flat roof’s health.

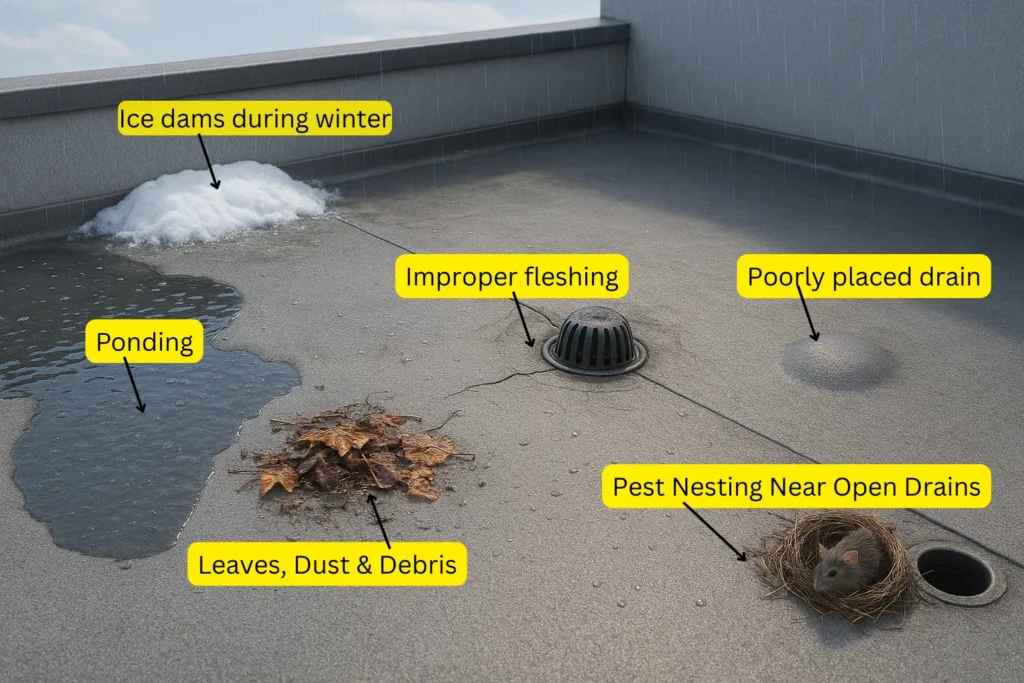

3. Common Drainage Problems on Flat Roofs

Let’s chack common problem with roof in drain

Flat roofs fail not because they’re flat — but because the drainage system doesn’t work the way it should. Let’s break down the most common (and costly) drainage issues that flat roof owners face:

1. Ponding Water & Sagging Areas

If water sits on the roof longer than 48 hours after rain, it’s a problem. Over time, that load creates structural sag or depressions, leading to even more pooling.

2. Clogged Drains from Leaves, Dust & Debris

Debris blocks scuppers or internal drains — especially near trees or garages. Without regular cleaning or drain guards, the system fails fast.

3. Ice Dams During Winter

In colder regions, melting snow re-freezes around drains, forming ice dams that block water and cause seepage.

4. Improper Flashing Around Drains

Even if the drain works, poor flashing lets water sneak under the membrane — especially on bitumen or metal roofs.

5. Too Few or Poorly Placed Drains

If you’ve got one drain handling a large roof, ponding is inevitable. Every 1000 sq. ft. should have at least one dedicated drain.

6. Roof Membrane Bubbles or Blisters

When water gets trapped under the roofing layer, air pockets or bubbles appear — usually a result of standing water.

7. Pest Nesting Near Open Drains

Birds, insects, and rodents love to build nests in open scuppers or cracked drains — which leads to clogging and bacteria buildup.

4. Types of Flat Roof Drain Systems

Flat roofs necessitate more than one type of drainage solution — the ideal system is influenced by the roof’s dimensions, your location, and the building type. Let’s explore the four most prevalent flat roof drainage systems you might come across:

A. Internal Drains

These are the most commonly found types for commercial and large residential buildings. The drains are situated at low points and linked to internal piping that traverses the building and exits at ground level. They are particularly effective in cold climates, as the pipes are shielded from freezing — however, they must be maintained clean and well-sealed to prevent clogs and leaks.

B. Scuppers

Scuppers are openings found in the parapet walls of a flat roof. Water drains off the roof and exits through these scuppers into downspouts or broad collection boxes. They are straightforward, cost-effective, and easy to maintain. However, during heavy rainfall, if scuppers are the sole system in place, overflow may occur.

C. Gutters & Downspouts

A suitable choice for smaller flat roof areas such as garages, sheds, or decks. Gutters are installed at the edge of the roof, gathering water and directing it to downspouts. Nevertheless, they are more exposed and can easily become clogged with leaves or debris.

D. Siphonic Drainage Systems

A high-efficiency system utilized in extensive flat roofs — it employs vacuum pressure to swiftly draw water from the roof to the ground without requiring a slope. These systems are intricate and generally need professional installation, but they are outstanding for regions with significant rainfall.

Bonus Tip:

Many advanced drainage systems integrate scuppers and internal drains — particularly in bitumen or metal flat roofs where overflows can cause damage.

5. Design Rules for Effective Flat Roof Drainage

Installing the right type of drain is half the battle. And how it is installed is just as important. So let’s look at the design rules that you should follow to keep your flat roof dry and damage-free.

Minimum Required Slope

Even “flat” roofs need a minimum slope of ¼ inch per foot to move water toward the drain. Without a slope, water will simply sit, causing ponding and eventually structural depressions.

Drain Placement Strategy

Drains should be placed in the lowest areas of the roof. Avoid placing drains near HVAC units, skylights, or high areas where debris can collect. If you’re not sure where the low points are – pour a bucket of water and see where it fills up!

Guideline: Make sure there is at least 1 drain for every 1000 square feet of flat roof space.

Backup System = Smart Protection

Relying on a single drain is risky. That’s why most smart flat roof designs combine internal drains with scuppers – if one fails, the other keeps the water moving.

Fixing a Slope with a Pitched Retrofit

If your roof already has a ponding problem or an improper slope, you don’t always have to tear everything down. Many homeowners add a pitched roof layer on top of a flat roof, which improves drainage without a complete replacement.

6. Flat Roof Drain in garage

Flat roof garages often face the worst of both worlds — they’re small enough that people ignore drainage design, but exposed enough to collect leaves, dirt, and moisture daily. This makes proper drainage even more important.

If your garage roof has no slope or drain, water tends to gather in one corner and slowly seep into joints. As time passes, this leads to rust, moisture stains on the ceiling, and potential structural sagging — particularly in older concrete slab garages.

One of the most common signs of failed garage drainage is when you start noticing peeling paint or bubbling plaster inside. If caught early, cleaning or retrofitting a drain may be enough. But if the roof starts sagging or leaking, full replacement might be the only fix — and yes, garage flat roof replacements have their own cost range.

7. Drainage in Bitumen & Metal Flat Roofs

Not all flat roofs are made the same — and drainage behaves very differently depending on the material. Let’s break down two popular but tricky ones: bitumen and metal flat roofs.

Bitumen Flat Roofs

Bitumen roofs are durable, affordable, and popular for garages or commercial extensions. But they’re sensitive to heat and water pooling. If the slope isn’t just right or drains get clogged, bitumen can bubble, blister, or even crack, especially around seams and corners.

Once water seeps below the surface, it travels underneath the membrane, making leaks hard to trace. This is why proper flashing and drain guards are a must.

Metal Flat Roofs

Metal roofs are long-lasting but tricky when flat. Unlike sloped metal panels, flat seam metal roofs have joints that expand and contract with temperature — this movement can create gaps near drains or flashing.

If the drains are installed without flexible flashing or without enough slope, water starts sneaking into seams. Proper sealant + slope + smart drain placement is the only way to prevent costly rusting or leaks.

8. Flat Roof Drain Maintenance Guide

A flat roof drain system may be perfectly designed – but if it’s not maintained, it will fail sooner or later. The truth is, most flat roof leaks start not with poor design, but with carelessness.

Clean drains seasonally

Every 3-4 months, inspect your roof drains – especially after fall or dust storms. Leaves, plastic, dirt and even dead insects can clog the outlet. Use a sock or blower to clear out the debris.

To prevent future clogs, install mesh guards or drain filters – they block leaves while allowing water to pass through.

Inspect flashing and edges

The seal between your drain and the roof membrane is a weak point. Flashing can crack, especially in older bitumen or metal systems.  If water is dripping under the flashing, it can travel a long way before it becomes visible.

A quick visual inspection after every rain can help catch flashing failures early.

Don’t ignore moisture or ventilation problems

If your roof is consistently damp even without rain, your roof vents and air circulation should be checked. That trapped moisture can increase pooling and lead to premature deterioration around gutters.

Watch for animal or insect nests

Birds, wasps, or even squirrels sometimes nest inside drain pipes or scuppers – especially in the corners of garages or roofs. Regular inspections help you stay one step ahead.

9. When to Replace the Drainage System

Even the best drainage systems don’t last forever. Over time, UV exposure, thermal expansion, and water pressure take their toll — especially if maintenance has been skipped.

Here are some signs it’s time to consider a full or partial drain replacement:

Persistent pooling following each rainfall, even after clearing it out.

Rust stains or leaking pipes around the drain outlet

Cracks in flashing or visible gaps where drain meets roof

Water damage extending within the structure or garage

You’ve already repaired the drain more than twice

In these situations, it is often more economical to replace the drainage system — or even part of the roof — rather than to carry out continuous repairs.

But how much does replacement actually cost?

That depends on roof size, material (bitumen, metal, or membrane), and whether you’re reworking just the drain or the entire roof.

To get a rough idea, check out these cost guides:

10. DIY vs. Professional Drain Setup

Many flat roof owners ask – “Can I fix this drain myself?”

Well, the answer is yes and no.

When DIY is OK

Whether it’s just a clogged drain, removing leaves, cleaning a pipe, or installing a mesh drain guard. This is a task that the majority of individuals can complete in less than 30 minutes. Because it’s easy, low-risk, and doesn’t require roofing expertise.

When to Call a Professional

If you see puddles, leaks, visible flashing gaps, or frequent blockages – don’t risk a DIY fix. You can seal the top, but water may already be trapped underneath.

A professional will inspect the drain placement, slope, flashing, insulation, and membrane bond, and recommend a permanent solution – not just a quick patch.

Think of it this way: If the problem is above the roof surface, you can manage it.  But if it’s down there, don’t risk it – hire a professional.

11. Conclusion

If there’s one thing flat roof owners often underestimate — it’s drainage. You can have the best materials and expert waterproofing, but if your drain system fails, everything else eventually will.

The good news? Most flat roof drainage problems can be prevented with basic planning, smart design, and seasonal maintenance. From garage roofs to metal or bitumen systems, a properly installed and maintained flat roof drain system is your first line of defense.

So whether you’re building new, renovating, or fixing an old leak — don’t ignore the water. Trust me, it never forgets where to go.

Start by inspecting your roof today, check for ponding, debris, or flashing gaps — and if in doubt, call a pro.
